1. Two Spoolholder types
Step 1 of 15 (Chapter 7 of 15)
Contenidos
Comentarios

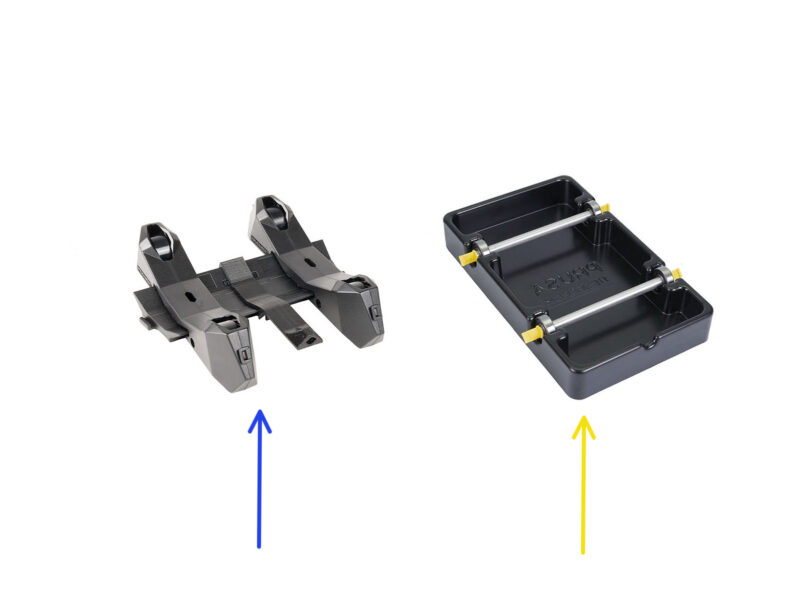

In this chapter, we will assemble the spool holders. Before proceeding, note that there are two types:
⬢1. Current Injection-molded spoolholder
Currently shipped in the MK4/S or CORE One versions. Continue to Injection molded spoolholder: parts preparation
⬢
2. Legacy vacuum-formed spoolholder
This old version used to come with the first MK3S versions or older upgraded units.
Continue to the Vacuum formed holder parts preparation
If the large portion of the box is occupied by the rectangular black trays, you have the first version, the older vacuum-formed spoolholders.
