1. Preparing the printer
Step 1 of 6 (Chapter 2 of 7)
Contents
Comments

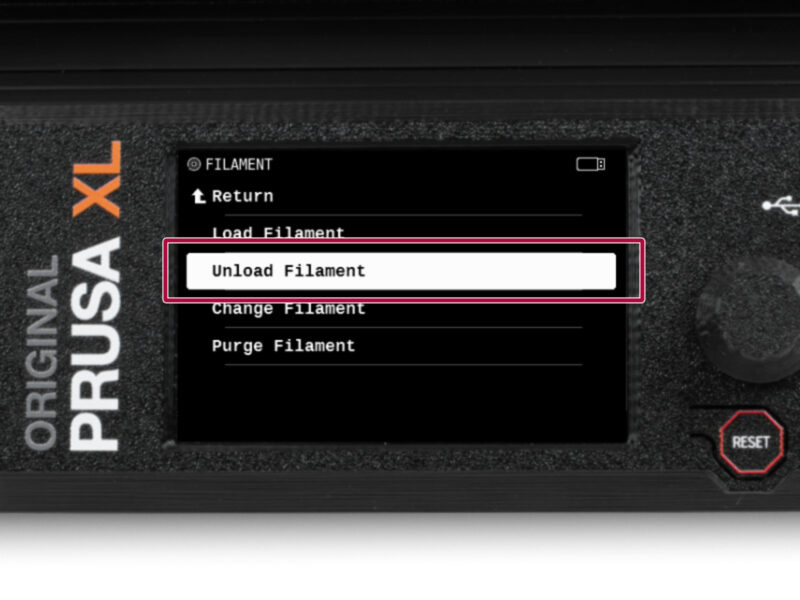

⬢If you have loaded the filament, unload it from the hotend. On the screen, navigate to Filament -> Unload Filament.
⬢Remove the filament from the hotend. It is is necessary to completely remove it from the printer.
WARNING: The hotend and heatbed are very HOT. Do not touch these parts!!!
⬢Move the Z-axis down. On the screen, navigate to Control -> Move axis -> Move Z.
⬢Cool down the printer. On the screen, navigate to Preheat -> Cooldown.
Wait until the hot parts are cooled down to ambient temperature. It takes approximately 10 minutes.
Contents
Original Prusa XL Dual-Head to Five-Head Upgrade (1.01)
Comments
Log in to post a comment
gvandehy
•
PLEASE! Add information on best Z height. Adding the cable cover for the PSU wires in step 4 was more challenging because of the Z height I had. I don't know if its easier mid-height or all the way down, but 100 mm from bottom is NOT a good height!
Todd Henderson
•
I'm just setting out on this upgrade. Glad I saw this comment. Reading ahead, it looks like you'll want to drop the z axis down as far as it goes (318 mm).
cod3monk3y
•
Also needed to Pick/Park Tool > Park Current Tool after unloading filament from 2nd tool
