2. Printer unboxing
Relevant for:
Last updated 9 months ago Difficulty
Easy Steps
8 Available languages
⬢Place the package on a stable surface. Make sure the package is oriented top side up. See the transportation label.
⬢The package is equipped with a tear strip that splits the box in two parts.
⬢Peel off the entire tear strip to split the box.
⬢Remove the top part of the box by lifting it up.
Inside, there are cardboard inserts that contain parts necessary for the assembly. Do not throw them out!
⬢Remove the top front cardboard insert. There are parts inside
There are printer parts inside the top cardboard insert! Make sure not to lose them!
⬢Remove the boxes on the side containing the nextruder parts.
⬢Remove the cardboard insert with the Haribos inside and the remaining nextruder boxes.
⬢Remove the front inner insert.
⬢Remove the welcome letter.
⬢Remove the box with Prusament on top.

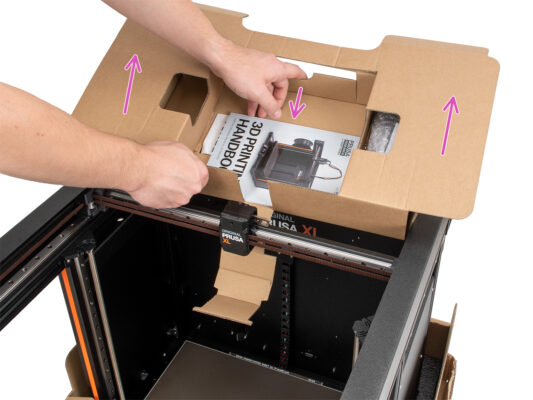

⬢There is a lever inside the top cardboard insert that locks it to the printer’s frame. Pull the lever to unhook the insert.
⬢While pulling the lever, lift the whole insert and remove it.
There are printer parts inside the top cardboard insert! Make sure not to lose them!
⬢Use the side handles on the printer to lift it up.
Do not handle the printer by the top metal profiles!!! Otherwise, you may warp the printer parts and damage the parts such as the LED lighting inside.
Handle the printer in two people by the sides.
⬢Hold the bottom of the box while you lift the printer up.
⬢Good job! The printer is ready for the next chapter.
⬢Visit chapter 3. Printer set up.
