4. Z-axis assembly

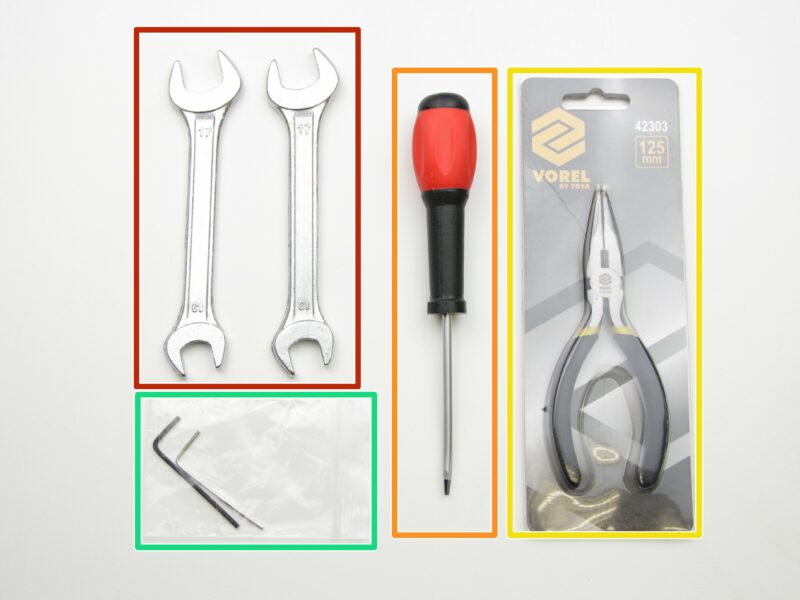

 Difficulty
Moderate
 Steps
27
 Available languages
CSPLESDEITFR
3D printed parts
3D printed parts
Z-axis-top-left
Z-axis-top-right
Z-axis-bottom-left
Z-axis-bottom-right
Z-screws-covers
Use the hole for 8 mm smooth rod as an orientation key in the next steps.
Screw Z-axis-bottom parts to the frame
Screw Z-axis-bottom parts to the frame
Screw Z-axis-bottom parts to the frame
Screw Z-axis-bottom parts to the frame
Place parts on the frame as shown in the picture. The small circular opening should be closer to the frame outer edge.
Note the frame orientation (PRUSA logo has to be visible).
All screws in this step are M3x10 (6 pcs).
Use 2.5mm Allen key to tighten the parts to the frame. The screws must be perpendicular to the frame.
Tighten them gently, no superhuman force required.
Note: If you have troubles tightening the screws, try to place them on the other side of the frame to clean the thread. Then place them again from the previous side. Proceed with caution, or you might break the screw.
Placing the Z-screw covers
Placing the Z-screw covers
Placing the Z-screw covers
Placing the Z-screw covers
Remove the trapezoid nuts from the motors.
Screw the Z-screw covers onto both leadscrews.
Covers should be screwed fully to the motor, but not too tight! The motor should keep spinning freely.
Placing the Z-motors
Placing the Z-motors
Placing the Z-motors
Place the Z motors on the frame.
Z motor left (labeled with Z axis left )
Z motor right (labeled with Z axis right, longer wire)
Ensure the correct position of the motors (left/right).
Ensure the wires are not pinched between the motor and the holder (see detailed photo).
Tighten the Z-motors
Tighten the Z-motors
Tighten the Z-motors
Use M3x10 screws (8 pcs) and M3w washers (8 pcs).
Use 2.5mm Allen key to tighten the motor to the printed part.
Assembling the X-axis
Assembling the X-axis
Assembling the X-axis
Assembling the X-axis
Carefully slide the X-axis on rods and trapezoid screws. By rotating both screws simultaneously let the X-axis to slide until both trapezoid screws are exposed as in the picture.
Insert the X-axis very carefully, perfectly in axis with the bearings and with a minimal force.
Placing the Z-axis-top parts
Placing the Z-axis-top parts
Placing the Z-axis-top parts
Placing the Z-axis-top parts
Place parts on the frame as in the picture.
Ensure the smooth rod is aligned with the top surface of the Z-axis-top part. Check both sides of the Z-axis.
Use 2.5mm Allen key to tighten the parts to the frame.
Check both leadscrews in the upper part of printer, they shouldn't touch the edges of the printed part. If so, release the motor holder at the bottom and slightly move it.
All screws in this step are M3x10 (4 pcs).
Cable management
Cable management
Cable management
Cable management
Insert the zip ties in the holes at the bottom of the frame.
Tie the cables to the frame as shown in the picture.
Note that the left Z-motor cables are tied with the last zip tie.
Cleaning up
Cleaning up
Use pliers and cut the excess zip tie.
Note the position of the connecting zip tie.
Assembling the Y-axis
Assembling the Y-axis
Assembling the Y-axis
Assembling the Y-axis
Grab the Y-axis assembly in your hand and slide it into the frame.
You should be able to lift the constructed printer as a whole.
Tighten the M10n nuts to the frame.
Ensure that there is a washer between a nut and the frame on both sides.
Ensure the correct orientation of the Y-axis assembly and the frame (longer part should be on the side with Z-axis motors).
Assembling the X-axis belt, part 1
Assembling the X-axis belt, part 1
Assembling the X-axis belt, part 1
DON'T TRIM THE BELT unless you are asked in the instructions!!!
Insert the flat part of the X-GT2 belt (longer one) into the X-carriage as in the picture.
A reference video is included at step 25 covering steps 16-24.
Note that there is no belt going out of the X-carriage, it's IMPORTANT.
Assembling the X-axis belt, part 2
Assembling the X-axis belt, part 2
Assembling the X-axis belt, part 2
Guide the belt around the pin as shown in the picture.
Insert the belt all the way into the belt holder as shown in the picture.
Note that there is no belt going out of the X-carriage, it's IMPORTANT.
Loosening the motor
Loosening the motor
Loosening the motor
Remove the two M3x18 screws.
Rotate the motor counter-clockwise as shown in the picture.
This step is illustrative, you don't need to remove the frame.
Tightening the X-axis belt, part 2
Tightening the X-axis belt, part 2
Tightening the X-axis belt, part 2
Guide the belt around the pin as shown in the picture.
Push the belt all the way into the X-carriage.
The belt shouldn't be tight at the moment.
Tensioning the belt
Tensioning the belt
Rotate the motor back.
Screw in the removed M3x18 screws.
If you have to apply too much force and are experiencing troubles, rotate the motor back, repeat previous step while loosening the belt.
The belt should be quite tight, it should 'ping' like a music string.
This step is illustrative, you don't need to remove the frame.
Remove the two M3x18 screws. Rotate the motor counter-clockwise.
Insert the flat part of the belt around the pin.
Rotate the motor back. Screw in the removed M3x18 screws.
Video is available in an online (digital) version only.
Adjusting tension screws
Adjusting tension screws
Gently tighten both screws until slight force is applied on both smooth rods.
By tightening/releasing both screws you can slightly adjust the position of the right leadscrew (see its position in the Z-axis-top-right printed part).
