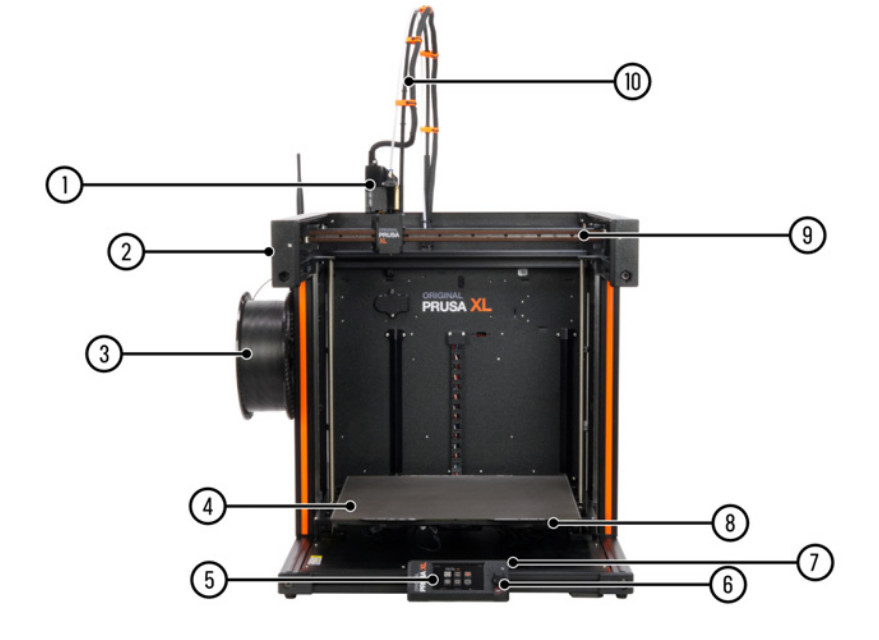

  1. Extruder (Nextruder)
  2. Filament sensor / Filament insertion point (on the side)
  3. Spoolholder (with a spool installed)
  4. Print sheet
  5. LCD
  6. Control Knob and Reset Button
  7. USB port
  8. Heatbed (moves along the Z-Axis)
  9. X/Y axis
  10. Extruder cables and PTFE tube

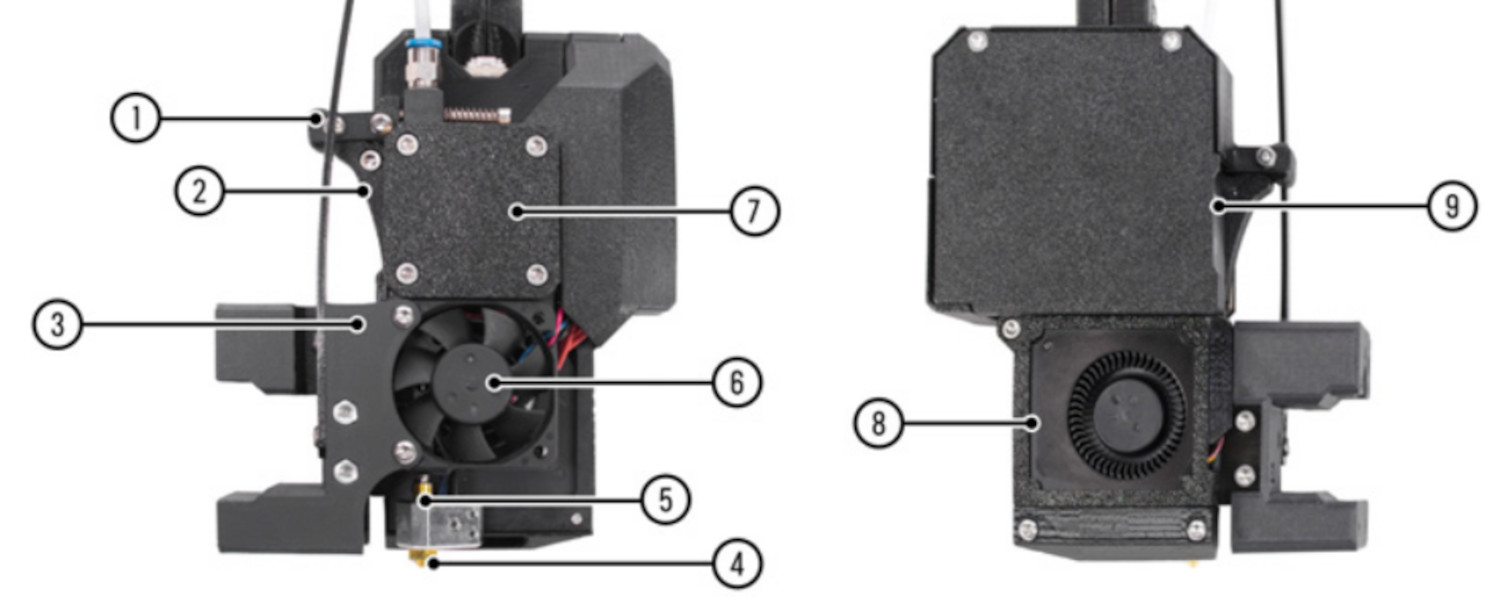

  1. Idler locking mechanism (swivel)
  2. Idler
  3. Nextruder body
  4. 0.4mm nozzle
  5. Heater Block (part of the Hotend assembly)
  6. Heatsink Fan
  7. Gearbox and extruder motor
  8. Print fan
  9. LED indicator
