2. Y-axis assembly

2. Y-axis assembly
Relevant for:
Last updated 4 years ago
2. Y-axis assembly
 Difficulty
Moderate
 Steps
43
 Available languages
CSPLESDEITFRJA
YZ frame - preparing the components
YZ frame - preparing the components
YZ frame - preparing the components
Prepare the following parts to build the YZ frame:
Aluminum extrusions (4x)
Aluminum frame (1x)
M5x16r screw (16x)
Before you proceed further, please place the frame on a FLAT SURFACE (this is crucial).
YZ frame - mounting the longer extrusions
YZ frame - mounting the longer extrusions
YZ frame - mounting the longer extrusions
YZ frame - mounting the longer extrusions
Take the LONGER aluminum extrusions and place them next to the frame.
Make sure the engraved PRUSA logo on the frame (top left) IS VISIBLE!
Note: screws are inserted from the opposite side of the frame. If you need to manipulate with the frame, make sure the extrusions are on the correct side.
Ensure you are using the correct holes, see the second picture. Use the M5 screws to connect extrusions to the frame. Tighten the screws with the Allen key just slightly!
Now, tighten the screws fully, but ON A DIAGONAL, see the last picture. As soon as you finish the first, tighten the second pair. Then proceed to the second long extrusion.
YZ frame - mounting the shorter extrusions
YZ frame - mounting the shorter extrusions
YZ frame - mounting the shorter extrusions
YZ frame - mounting the shorter extrusions
Take the SHORTER aluminum extrusions and place them next to the frame.
Short extrusions must be placed on the side, where engraved PRUSA logo on the frame (top left) IS NOT VISIBLE.
Note: screws are inserted from the opposite side of the frame. If you need to manipulate with the frame, make sure the extrusions are on the correct side.
Ensure you are using the correct holes, see the second picture. Use the M5x16 screws to connect extrusions to the frame. Tighten the screws just slightly!
Now, tighten the screws fully, but ON A DIAGONAL, see the last picture. As soon as you finish the first, tighten the second pair. Then proceed to the second short extrusion.
YZ frame - final check
YZ frame - final check
Before we proceed further, let's make a final check. IT IS VERY IMPORTANT to have extrusions on the correct side of the frame.
Long extrusions - must be on the side of the frame with the Prusa logo, also ensure longer extrusions are closer together.
Short extrusions - must be on the side of the frame without the Prusa logo, also ensure shorter extrusions are further away from each other.
Y-axis: front plate assembly
Y-axis: front plate assembly
Y-axis: front plate assembly
Rotate the frame with longer extrusions towards you.
Place the front plate on the extrusions and secure it with M5x16r screws, DON'T TIGHTEN them yet!
Now, tighten the screws fully, but ON A DIAGONAL, see the second picture. As soon as you finish the first, tighten the second pair. Then proceed to the second long extrusion.
Different PSU types
Different PSU types
There are two types of the PSU with different mounting points. Make sure you are following the correct instructions!!!
New PSU with black casing (PSU holders are on the side of the extrusion)
Old PSU with silver casing (PSU holders are on the top of the extrusion)
Find your PSU in the package.
Y-axis: preparation for the Black PSU
Y-axis: preparation for the Black PSU
Y-axis: preparation for the Black PSU
Y-axis: preparation for the Black PSU
THIS IS A VERY IMPORTANT STEP! Incorrect placement of PSU holders will lead to issues later.
This step is valid only for the BLACK PSU!!!
Take the YZ frame and rotate it with the shorter extrusions towards you.
Place the PSU holders (M3nE) in the extrusion, use the side section, ensure it is the correct extrusion. See the picture.
The exact spacing of the PSU holders doesn't matter, we will adjust them later.
Y-axis: preparation for the Silver PSU
Y-axis: preparation for the Silver PSU
Y-axis: preparation for the Silver PSU
Y-axis: preparation for the Silver PSU
THIS IS A VERY IMPORTANT STEP! Incorrect placement of PSU holders will lead to issues later.
This step is valid only for the SILVER PSU!!!
Take the YZ frame and rotate it with the shorter extrusions towards you.
Place the PSU holders (M3nE) in the extrusion, use the top section, ensure it is the correct extrusion. See the picture.
The exact spacing of the PSU holders doesn't matter, we will adjust them later.

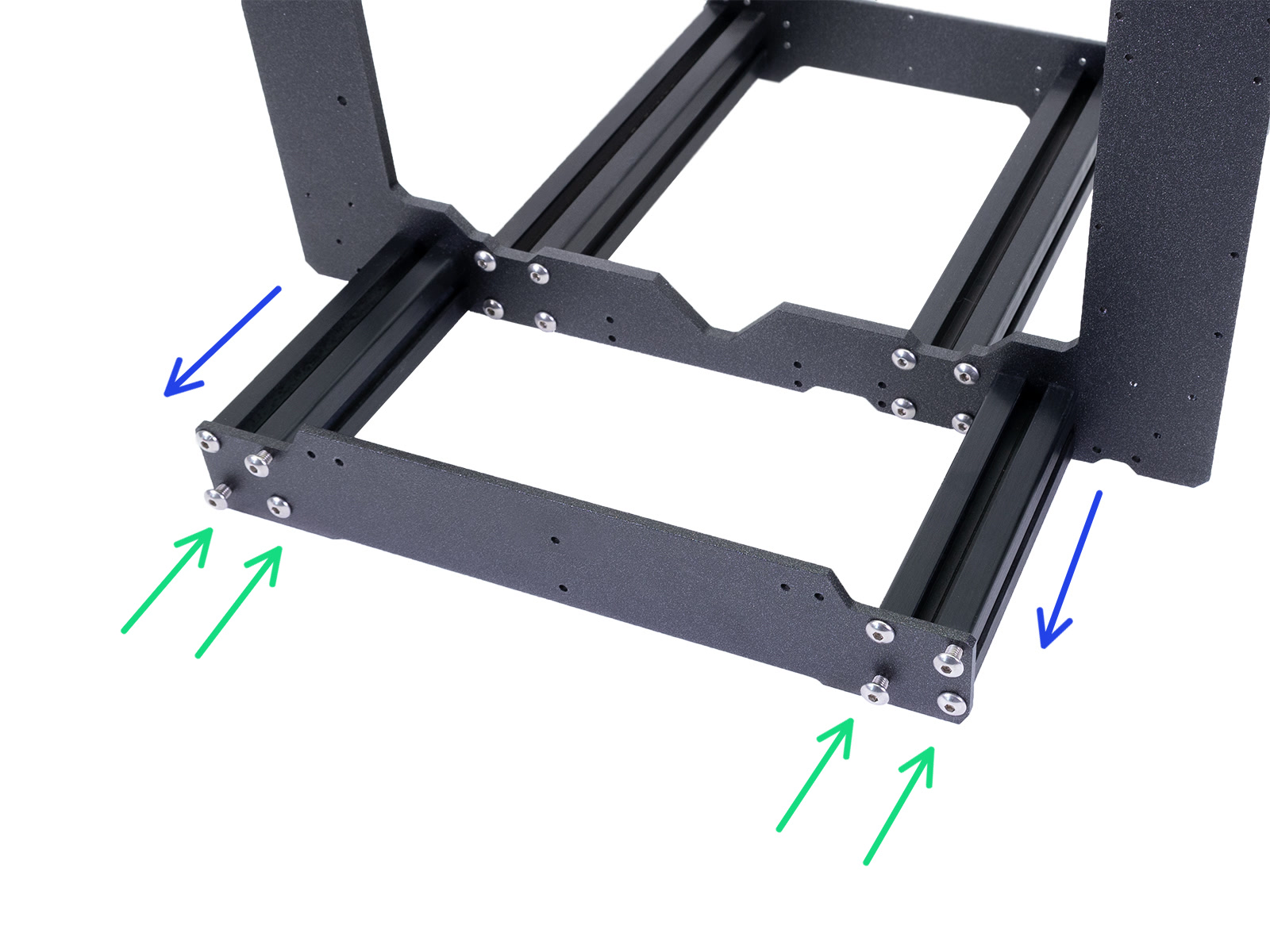

Y-axis: rear plate assembly
Y-axis: rear plate assembly
Y-axis: rear plate assembly
Ensure the frame with shorter extrusions is rotated towards you.
Place the rear plate on the extrusions and secure it with M5x16r screws, DON'T TIGHTEN them yet!
Now, tighten the screws fully, but ON A DIAGONAL, see the second picture. As soon as you finish the first, tighten the second pair. Then proceed to the second short extrusion.
Y-axis: geometry check
Y-axis: geometry check
Y-axis: geometry check
Before you proceed further, please place the frame on a FLAT SURFACE (this is crucial).
All the components are cut or drilled by machine for highest precision, but with uneven tightening, it is possible to warp the frame.
Using your hand, try to wiggle with the frame sides and check, whether some corners are lifting up or not.
In case you find some imperfections, release the screws, press the extrusions against the FLAT SURFACE and tighten them again.
IMPORTANT INFO: the printer is capable of self-correcting a certain amount of the frame skew. Try getting the geometry as best as possible, however, if one of the corner still keeps lifting up with values up to 2 mm (0.08 inch) you can proceed.
Mounting antivibration feet (optional)
Mounting antivibration feet (optional)
Mounting antivibration feet (optional)
Mounting antivibration feet (optional)
Note this step is optional for now. We recommend mounting the feet now to protect the surface on your table (workbench). However, you need to lift the frame up before each turn.
There will be extra step at the end of the assembly to remind you of the antivibration feet.
Note there are two designs of the feet, your package will have either the new version (marked orange) or the old version (marked red).
For this step, please prepare:
New antivibration foot (4x)
Old antivibration foot (4x)
Turn the YZ frame on the side and insert the antivibration foot. For the new design, insert and turn 90 degrees to lock it in place. For the old design insert inclined, then rotate the foot until you squish the rim inside the extrusion.
Repeat this process on all 4 feet. Place them 2-3 cm from the end of each extrusion.
Preparing Y-rod-holder
Preparing Y-rod-holder
Preparing Y-rod-holder
Preparing Y-rod-holder

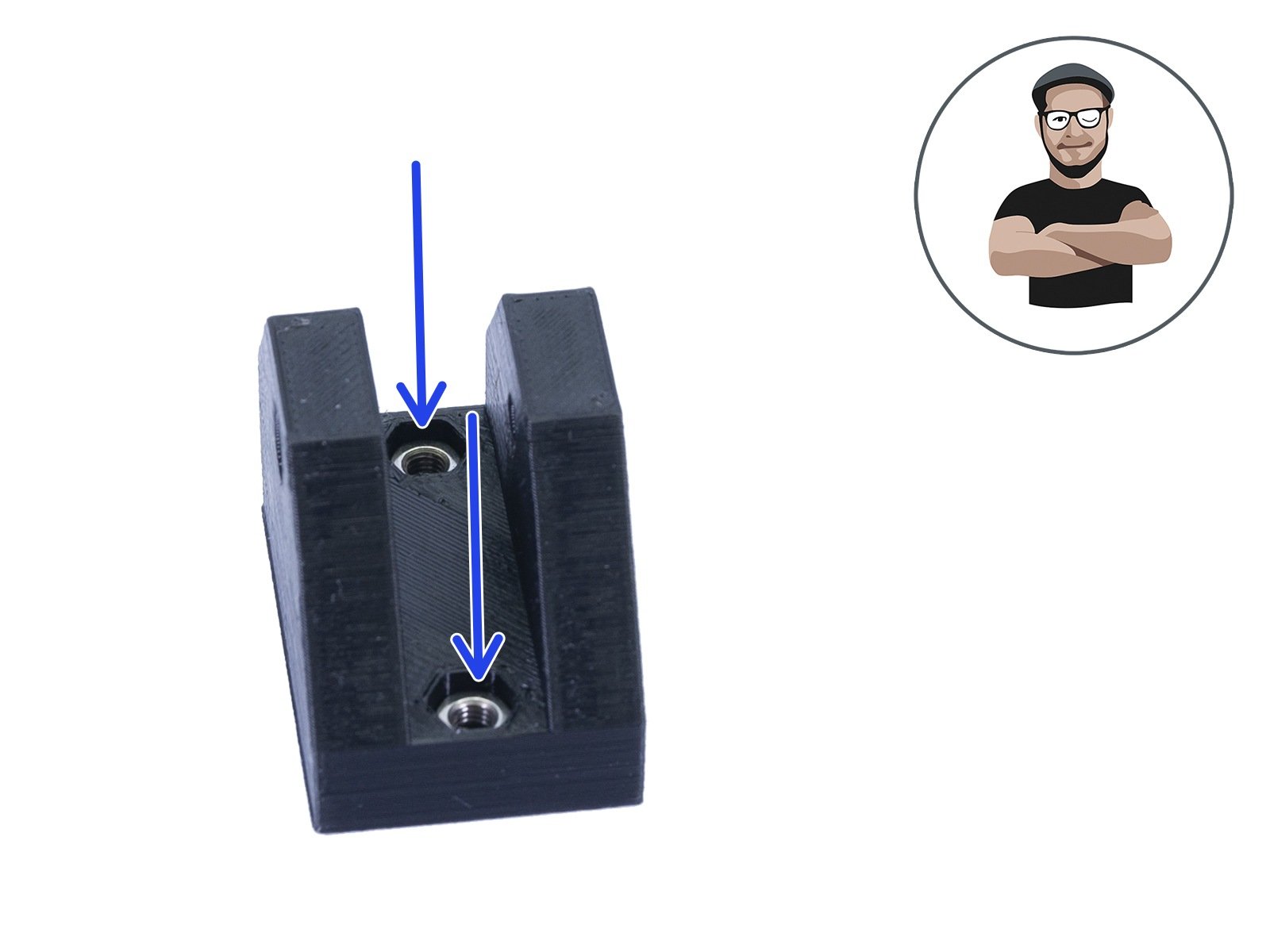

Take one Y-rod-holder and insert two M3nS nuts.
Make sure you've pressed the nuts all the way in. You can use pliers, BUT be careful, you can damage the printed part.
In case you can't press the nuts in, don't use excessive force. First, check if there isn't any obstacle in the nut trap.
Ensure and adjust the alignment of each nut with the 2mm Allen key.
Repeat this step for the remaining Y-rod-holders.
Mounting the Y-rod-holder parts
Mounting the Y-rod-holder parts
Mounting the Y-rod-holder parts
Mounting the Y-rod-holder parts
Take the first pair of Y-rod-holders and place them on the longer extrusions, openings for screws must be facing up.
Rotate the 3D printed parts towards the front plate.
Secure each front holder with two M3x10 screws. Tighten both screws equally, but not completely. We will tighten them fully later on.
Take the second pair of the Y-rod-holders and secure them with M3x10 screws on the rear plate (with shorter extrusions). Tighten both screws equally, but not completely. We will tighten them fully later on.
In case the M3nS nuts keep falling out, please flip the frame upside down. Tighten both printed parts and then return the frame to the previous position.
Preparing Y-belt-idler (part 1)
Preparing Y-belt-idler (part 1)
For the following steps, please prepare:
Y-belt-idler (1x)
M3x18 screw (1x)
M3x10 screw (2x)
M3nN nyloc nut (1x)
M3n (2x)
623h bearing housing (1x)
Preparing Y-belt-idler (part 2)
Preparing Y-belt-idler (part 2)
Preparing Y-belt-idler (part 2)
Take the Y-belt-idler and insert two M3n nuts from the top.
Turn the idler to the other side and insert the M3nN nyloc nut. The rubber inside the nut must be facing towards you. BE CAREFUL, don't over tighten the screw, you can break the part!
Make sure all three nuts are all the way in.
In case you can't press the nuts in, don't use excessive force. Take M3 screw thread it from the opposite side of the printed part, as you tighten the screw, it will pull the nut in. Be careful not to break the idler during tightening.
Preparing Y-belt-idler (part 3)
Preparing Y-belt-idler (part 3)
Preparing Y-belt-idler (part 3)
Insert the prepared bearing in the Y-belt-idler.
Bearing housing orientation doesn't matter.
Secure the bearing with the M3x18 screw. Don't fully tighten the screw.
Place your finger on the bearing and ensure it can rotate freely. If needed adjust the screw.
Mounting the Y-belt-idler
Mounting the Y-belt-idler
Rotate the frame with longer extrusions towards you.
Take the Y-belt-idler and place it on the front plate. Note there is a mark (circle) on the printed part facing up.
Secure the Y-belt-idler with two M3x10 screws. Tighten the screws until the printed part reaches the surface of the plate.
This approach is different compared to the previous model MK3, follow the instructions in this step.
Y-axis: motor and motor holder
Y-axis: motor and motor holder
Y-axis: motor and motor holder
For the following steps, please prepare:
Y-axis motor (1x)
Y-motor-holder (1x)
M3x10 screw (4x)
M3n nut (2x)
Ensure you are using the correct motor, there is a label on the bottom of the casing. The reason is, each motor has different cable length.
Preparing Y-motor-holder
Preparing Y-motor-holder
Preparing Y-motor-holder
Take the Y-motor-holder and insert two M3n nuts.
In case you can't press the nuts in, don't use excessive force. Use an M3 screw from the other side and tighten it.
Place the Y-motor-holder on the motor, ensure the correct orientation as in the picture (use the motor cable).
Using two M3x10 screws tighten holder and motor together.
Mounting Y-motor-holder
Mounting Y-motor-holder
Take the Y-motor-holder and place it on the rear plate (short extrusions).
Ensure the correct orientation, the motor shaft must be facing towards the aluminium extrusion with the PSU holders. Note that their position in the extrusion differs based on the Black PSU (holders are on the side) or Silver PSU (holders are on the top).
Secure Y-motor-holder with two screws M3x10.
Y-axis: Y-carriage
Y-axis: Y-carriage
Y-axis: Y-carriage
For the following steps, please prepare:
Y-carriage (1x)
U-bolt (3x)
Linear bearing (3x)
M3nN nyloc nut (6x)
The printer's package contains a lubricant, which is intended for maintenance. No need to use it now the bearings are lubricated. There is a dedicated online manual on how to clean the printer and apply the lubricant. See help.prusa3d.com/maintenance-tips
For MK2/S owners, the Y-carriage is now symmetrical in one direction, therefore the dot (countersink, marker) orientation for bearing insertion doesn't matter.

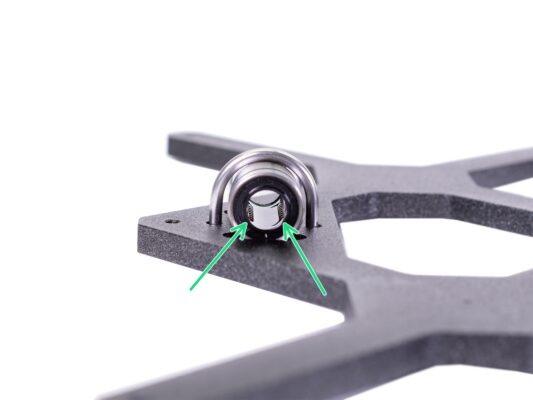

Correct bearing orientation
Correct bearing orientation
Correct bearing orientation
Correct bearing orientation
The correct orientation: When placing bearings onto the Y-carriage, make sure that they are oriented as shown in both pictures. The tracks (rows of balls) have to be on the sides.
The incorrect orientation: Avoid placing the bearing like in the last picture! This orientation with a single row of balls in the center of the hole will later increase the wear of the smooth rod, possibly creating a groove in it.
The printed version of this manual (v3.14 and older) suggests a different approach, please follow the online version instead.
Installing bearings on the Y-carriage (part 1)
Installing bearings on the Y-carriage (part 1)
Installing bearings on the Y-carriage (part 1)
Installing bearings on the Y-carriage (part 1)
This is VERY IMPORTANT part of the assembly, which can significantly influence printer's behaviour. PLEASE read following lines carefully!
Place the Y-carriage on a flat surface. Orientation doesn't matter.
Insert linear bearing in the cutout and secure it by U-bolt.
Hold thumb on the U-bolt and turn the carriage. Place nyloc nuts on both ends of the U-bolt.
Start tightening the nuts, BUT ENSURE you are tightening both nuts equally and AS SOON AS EACH NUT REACHES THE SURFACE OF THE Y-CARRIAGE STOP TIGHTENING!!! We will finish tightening the nuts in the next step.
Repeat these steps for the remaining two linear bearings.
Over tightening nuts leads to deformation of the bearing and all the issues connected with it. Please follow the instructions.
Installing bearings on the Y-carriage (part 2)
Installing bearings on the Y-carriage (part 2)
Installing bearings on the Y-carriage (part 2)
Ensure again the nuts are tightened just to the surface and equally.
Check if the bearing is centered in both directions, if not slightly release the nuts and adjust its position. Then retighten the nuts to the previous state.
When you are ready, using pliers rotate each nut, but only 90°. This is enough to fix the bearing without deforming it.
Repeat these steps for remaining two linear bearings.
Inserting smooth rods into Y-carriage
Inserting smooth rods into Y-carriage
Inserting smooth rods into Y-carriage
Take all the smooth rods and compare their lengths. For Y-carriage you need mid-sized rods (330 mm).
NOW, PLEASE BE VERY CAREFUL! Gently insert the rod straight into the bearings, do not apply too much force and do not tilt the rod!
If you can't slide the smooth rod easily, check the two bearings are aligned properly.
In case you manage to push out balls from the bearings, please count them. One or two balls are ok, if there are more of them, please consider ordering new bearings.
Mounting the Y-carriage
Mounting the Y-carriage
Mounting the Y-carriage
Take the Y-carriage including smooth rods and place them in YZ-frame. Make sure, that two bearings are on the left side (see the picture).
Using your thumb, press the smooth rods inside all four holders. Don't use excessive force.
Check again the correct bearing orientation!!!
Securing the Y-carriage
Securing the Y-carriage
Securing the Y-carriage
Securing the Y-carriage
Find the package with zip ties and take out 4 pieces.
Slide the zip tie through the holder, there is a slot.
Connect the zip tie and tighten it. The "head" should be inside the frame.
Using pliers cut the remaining part.
Repeat this step in all four corners.
Aligning the smooth rods
Aligning the smooth rods
Aligning the smooth rods
Aligning the smooth rods
IMPORTANT: proper alignment of the smooth rods is crucial to reduce noise and overall friction.
Ensure all M3x10 screws on Y-holders are slightly loosened, so the printed parts are able to move.
Move the Y-carriage back and forth across the entire length of the smooth rods to align them.
Then move the carriage to the front plate and tighten all screws in the front-Y-holders.
Move the Y-carriage to the rear plate and tighten all screws in the back-Y-holders.
Assembling the Y-motor pulley
Assembling the Y-motor pulley
Assembling the Y-motor pulley
Assembling the Y-motor pulley
There is a flat part on the motor shaft, rotate it similarly to the first picture. See the direction of the arrows.
Place a GT2-16 pulley on the Y-motor shaft as shown in the picture.
Don't press the pulley against the motor. Leave a gap so the pulley can rotate freely.
One of the screws must be facing directly against the pad (flat part) on the shaft. Slightly tighten the first screw.
Turn the shaft and slightly tighten the second screw.
Don't tighten the pulley firmly yet, we'll get to that later.
Y-axis: Assembling the belt
Y-axis: Assembling the belt
For the following steps, please prepare:
Y-belt-holder (1x) smaller of two
Y-belt-tensioner (1x) bigger of two
Y-axis belt 650 mm (1x)
M3x30 screw (1x)
M3x10 screw (4x)
M3nN nyloc nut (1x)
M3n nut (2x)
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Take the Y-belt-holder (smaller of the two printed parts).
Insert M3n nut, all the way in.
Insert M3nN nyloc nut, all the way in.
Use the screw pulling technique.
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt

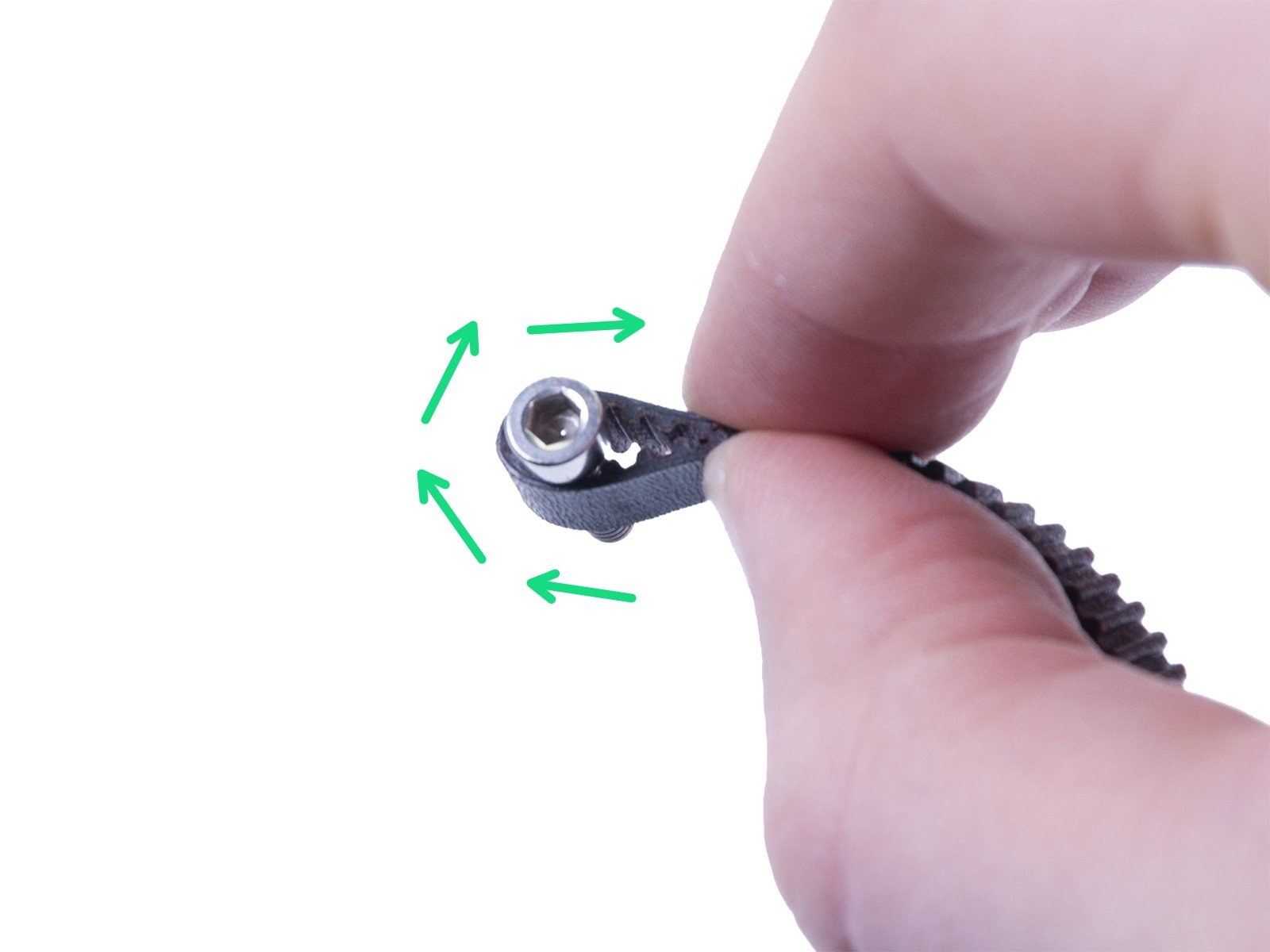

Bend one end of the belt around M3x10 screw.
Push it in the holder as in the picture. Use an Allen key to push the belt in.
Make sure the bent part and the end are within the width of the printed part.
Teeth on the belt must be facing up!
Tighten the screw until you reach the nut, don't over tighten the screw, you will deform the belt.
Hold the nut from the other side until the screw reaches its thread.
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Using M3x10 screw fix the Y-belt-holder to the Y-carriage. Tighten the screw and ensure the printed part is parallel with the "axis" between the Y-motor and Y-belt-idler.
Use the hole on the left, see the picture.
Guide the belt along the Y-axis, around the pulley on the Y-motor and back.
Make sure the belt is inside the frame, not under!
Push the belt through the Y-belt-idler and back to the "center" of the Y-carriage.
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Take the Y-belt-tensioner (bigger of the two printed parts).
Insert M3n nut, all the way in.
Use the screw pulling technique.
Bend second end of the belt around the screw and push it in the holder as in the picture. Use an Allen key to push the belt in.
Make sure the bent part and the end are within the width of the printed part.
Teeth on the belt must be facing up!
Tighten the screw until you reach the nut, don't over tighten the screw, you will deform the belt.
Hold the nut from the other side until the screw reaches its thread.
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Y-axis: Assembling the belt
Using M3x10 screw fix the Y-belt-tensioner to the Y-carriage. Don't tighten the screw completely, we need to adjust the position of the printed part.
Use the hole on the right, see the picture.
Insert the M3x30 screw through both printed parts. Start tightening until you reach the M3nN nyloc nut.
Aligning the Y-axis belt
Aligning the Y-axis belt
Make sure the belt is placed in the "axis" of the printer. Both top and bottom part of the belt should be parallel (above each other).
To adjust the belt position, release screws on the pulley and slightly move with it, until you reach the best position.
Tighten both screws on the pulley.
Tensioning the Y-axis belt
Tensioning the Y-axis belt
Tensioning the Y-axis belt

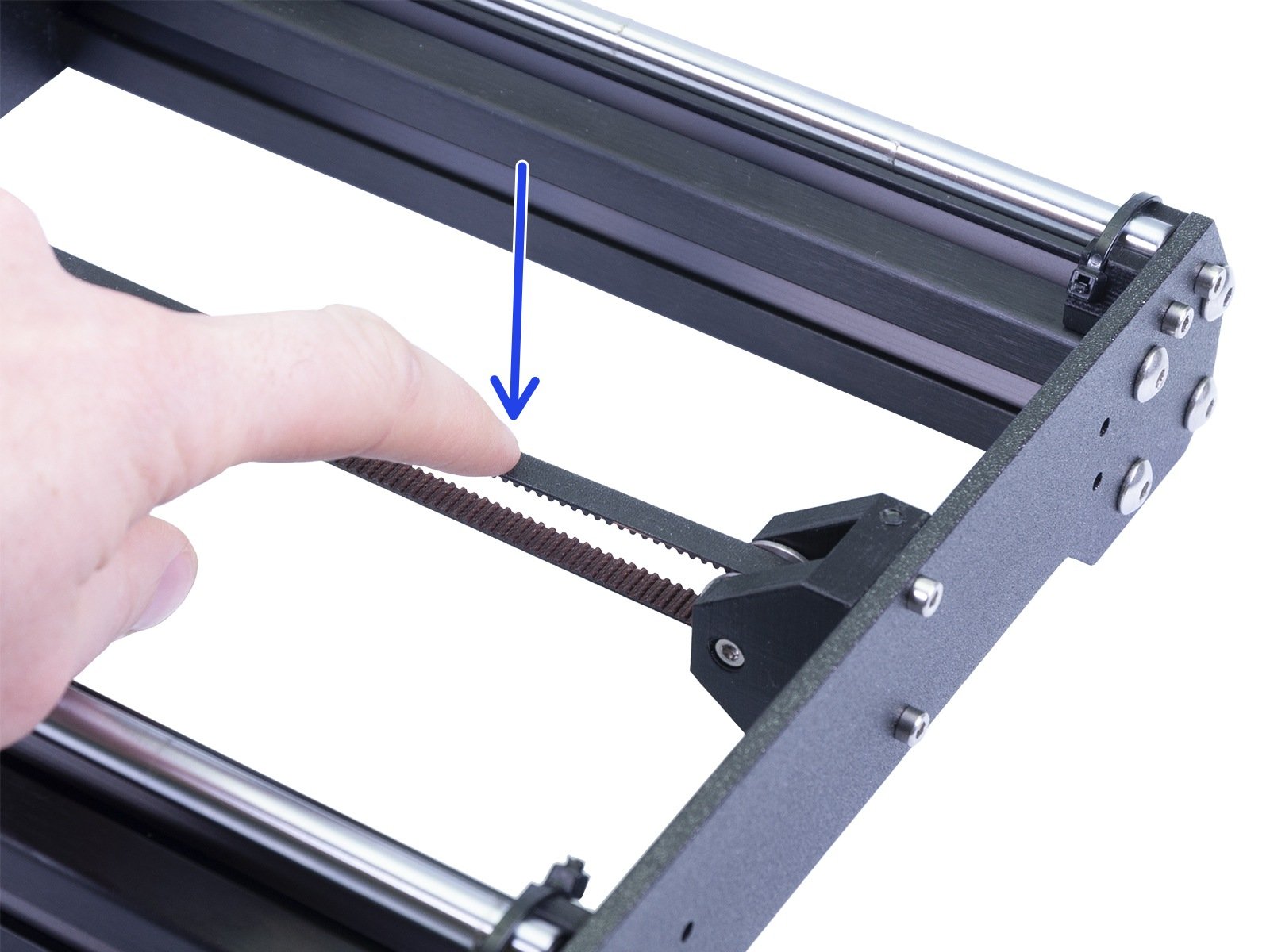

Using a finger on your left hand push the belt down. Some force should be needed for bending the belt, BUT don't try to overstretch the belt as you might damage the printer.
You can change the tension in the belt by adjusting the M3x30 screw below the Y-carriage.
Tighten the screw, bring the parts closer and thus increase the overall tension.
Release the screw, parts will move apart, the overall tension will decrease.
Testing the Y-axis belt
Testing the Y-axis belt
Testing the Y-axis belt
Use the technique described below to test if the belt is properly stretched.
Use pliers to hold the Y-axis motor shaft.
Move the Y-carriage with your hand towards the Y-axis motor. Don't use excessive force.
If the belt is stretched properly, you should feel a resistance and the Y-carriage won't move at all. If the belt is too loose, it will deform (create a "wave") and jump over the teeth on the pulley.

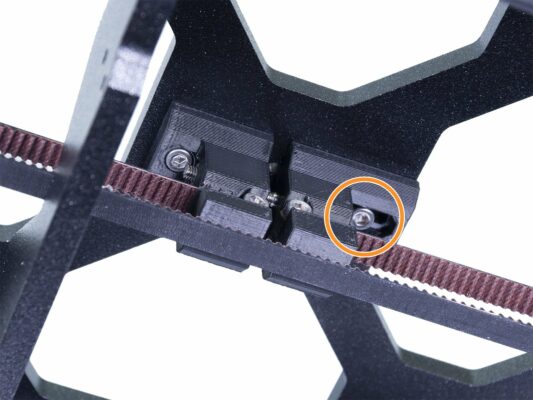

After the proper tension is set, tighten the M3x10 screw.
Haribo time!
Haribo time!
Carefully and quietly open the bag with the Haribo sweets. High level of noise might attract nearby predators!
You need to split the bears into 8 groups according to the upcoming chapters.
Each chapter requires specific amount of bears, see the picture.
For Y-axis you must eat 15 % of all the bears.
Y-axis is finished!
Y-axis is finished!
Y-axis is done, great job!
Check the final look, compare it to the picture.
Note that you should feel some resistance while moving with the Y-carriage. It is due to the tightened belt and also the motor has some resistance.
Ready for more? Lets move to 3. X-axis assembly
Was this guide helpful?

Comments

Still have questions?

Still have questions?

If you have a question about something that isn't covered here, check out our additional resources.
And if that doesn't do the trick, you can send an inquiry to [email protected] or through the button below.

Contact us
